The non-directional standard depth pattern designed for loader/grader
Special cut resistant tread compound protects tire from all kinds of cuts
Best option for low intensity application
| Tire Size | PR | Type | TRA Code | OTD | Recommended Rim/ Flange Height | Approximate Inflated Dimensions | Max. Load Capacity | Cold Inflation Pressure | |
| SW | OD | ||||||||
| (mm) | (mm) | (mm) | (kg) | (KPa) | |||||
| 14.00-24 | 16 | TT/TL | E-3/L-3 | 25.5 | 10.0 | 375 | 1370 | 7300 | 550 |
| 15.5-25 | 12 | TT/TL | E-3 | 24.5 | 12.00/1.3 | 395 | 1275 | 5600(10km/h) 3250(50km/h) | 400(10km/h) 250(50km/h) |
| 15.5-25 | 16 | TT/TL | L-3 | 24.5 | 12.00/1.3 | 395 | 1275 | 6750(10km/h) 3615(50km/h) | 550(10km/h) 300(50km/h) |
| 17.5-25 | 12 | TT/TL | E-3 | 25.0 | 14.00/1.5 | 445 | 1350 | 3650 | 225 |
| 17.5-25 | 12 | TT/TL | L-3 | 25.0 | 14.00/1.5 | 445 | 1350 | 6150 | 350 |
| 20.5-25 | 16 | TT/TL | E-3 | 31.0 | 17.00/2.0 | 520 | 1495 | 5450 | 275 |
| 20.5-25 | 16 | TT/TL | L-3 | 31.0 | 17.00/2.0 | 520 | 1495 | 8250 | 350 |
| 20.5-25 | 20 | TT/TL | E-3 | 31.0 | 17.00/2.0 | 520 | 1495 | 6000 | 325 |
| 20.5-25 | 20 | TT/TL | L-3 | 31.0 | 17.00/2.0 | 520 | 1495 | 9500 | 450 |
| 23.5-25 | 16 | TT/TL | E-3 | 33.0 | 19.50/2.5 | 595 | 1615 | 6150 | 225 |
| 23.5-25 | 16 | TT/TL | L-3 | 33.0 | 19.50/2.5 | 595 | 1615 | 9500 | 300 |

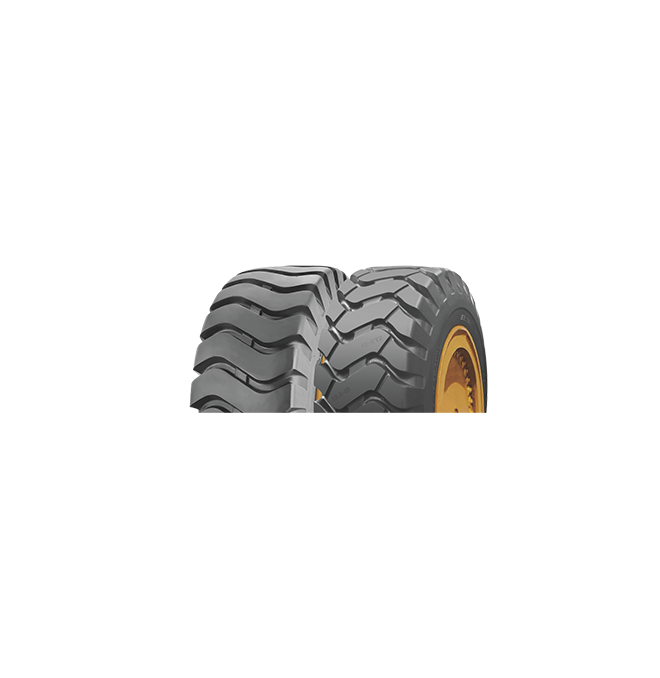

Note: 17.5-25 EL36 pattern is the left one, 20.5-25 23.5-25 EL36 pattern is the right one
*Reserves the rights of final interpretation and modification
