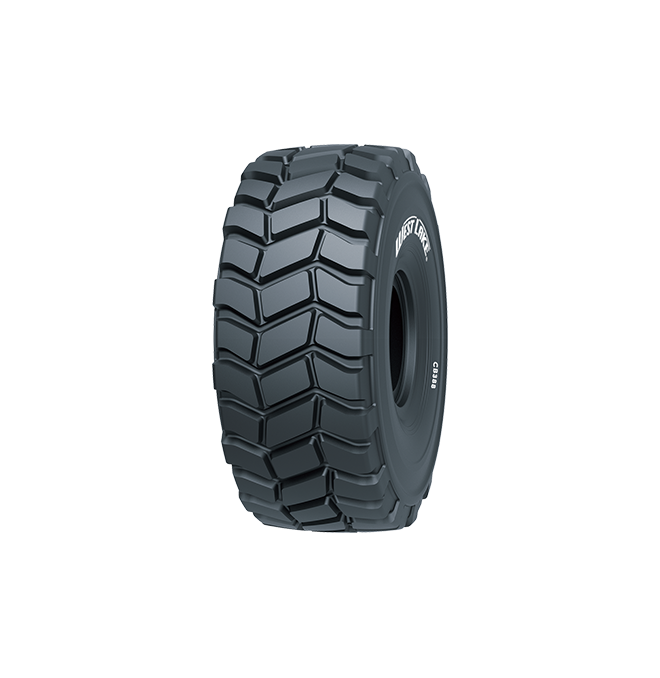

The non-directional E-3 tire for high powered scrapers in soft or muddy surfaces
Cut resistant tread design for even wear
Built-up sidewall for protection against sidewall penetrations
| Tire Size | Type | LI/SS | Star Rating | TRA Code or Application | Recommended Rim/Flange Height | Approximate Inflated Dimensions | OTD | Cold Inflation Pressure | Max. Load Capacity | Application Max.Speed | |||||||||
| OD | SW | SLR | |||||||||||||||||
| inch | mm | inch | mm | inch | mm | inch | mm | 32ND | KPa | Psi | Kg | Lbs | km/h | mph | |||||
| 33.25R29 | TL | 209B | ★★ | E-3 | 27.00/3.5 | 2090 | 82.3 | 845 | 33.3 | 937 | 36.9 | 50 | 63 | 525 | 76 | 18500 | 40800 | 50 | 30 |
| 33.25R29 | TL | 225A2 | ★★ | L-3 | 27.00/3.5 | 2090 | 82.3 | 845 | 33.3 | 937 | 36.9 | 50 | 63 | 650 | 94 | 29000 | 64000 | 10 | 5 |
| 800/80R29 | TL | 209B | ★★ | E-3 | 27.00/3.5 | 2090 | 82.3 | 845 | 33.3 | 937 | 36.9 | 50 | 63 | 525 | 76 | 18500 | 40800 | 50 | 30 |
| 800/80R29 | TL | 225A2 | ★★ | L-3 | 27.00/3.5 | 2090 | 82.3 | 845 | 33.3 | 937 | 36.9 | 50 | 63 | 650 | 94 | 29000 | 64000 | 10 | 5 |
*Reserves the rights of final interpretation and modification
