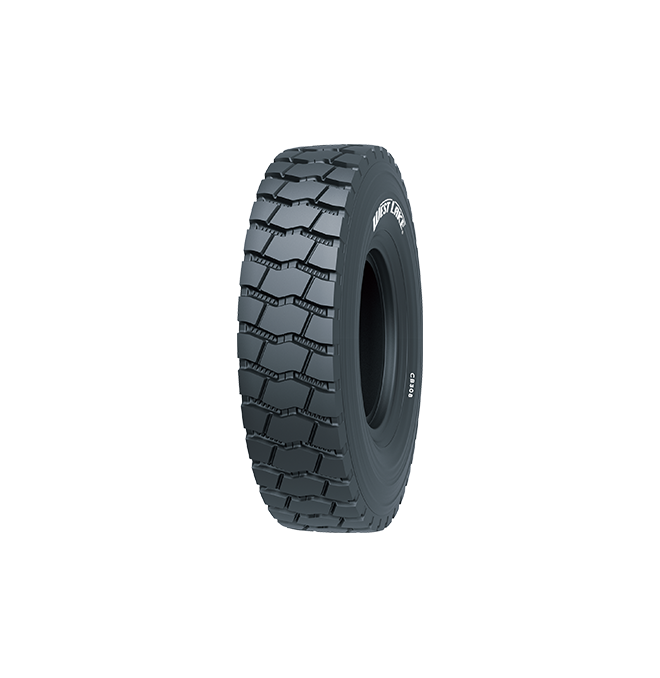

Block pattern design is equipped with high wear resistance capacity.
Special tread compound for ultra-low heat generation.
The finite element method is used to optimize the structure to minimize tire temperature and prolong tire life.
Particularly suitable for large mines with wide driving surfaces and long distances.
| Tire Size | Type | LI/SS | Star Rating | TRA Code or Application | Recommended Rim/Flange Height | Approximate Inflated Dimensions | OTD | Cold Inflation Pressure | Max. Load Capacity | Application Max.Speed | |||||||||
| OD | SW | SLR | |||||||||||||||||
| inch | mm | inch | mm | inch | mm | inch | mm | 32ND | KPa | Psi | Kg | Lbs | km/h | mph | |||||
| 14.00R25 | TT/TL | 169B/188A2 | ★★★ | E-3 | 10.00/2.0 | 1370 | 53.9 | 375 | 14.8 | - | - | 25 | 31 | 700 | 102 | 5800 | 12800 | 50 | 30 |
| 16.00R25 | TT/TL | 180B | ★★★ | E-3 | 11.25/2.0 | 1495 | 58.9 | 430 | 16.9 | - | - | 30 | 38 | 800 | 116 | 8000 | 17600 | 50 | 30 |
| 18.00R25 | TT/TL | 189B | ★★★ | E-3 | 13.00/2.5 | 1615 | 63.6 | 495 | 19.5 | - | - | 32 | 40 | 800 | 116 | 10300 | 22700 | 50 | 30 |
| 460/95R25 | TT/TL | 183B | ★★★ | E-3 | 11.25/2.0 | 1520 | 59.8 | 460 | 18.1 | - | - | 30 | 38 | 800 | 116 | 8750 | 19300 | 50 | 30 |
| 16.00R29 | TT/TL | 182B/200A2 | ★★★ | E-3 | 11.50/2.5-29 | 1616 | 63.6 | 448 | 17.6 | - | - | 30 | 38 | 700 | 102 | 8500 | 18700 | 50 | 30 |
| 480/95R29 | TT/TL | 190B/204A2 | ★★★ | E-3 | 13.00/2.5-29 | 1615 | 63.6 | 480 | 18.9 | - | - | 32 | 40 | 900 | 131 | 10600 | 23400 | 50 | 30 |
| 505/95R29 | TT/TL | 193B | ★★★ | E-3 | 13.00/2.5-29 | 1730 | 68.1 | 505 | 19.9 | - | - | 32 | 40 | 900 | 131 | 11500 | 25400 | 50 | 30 |
*Reserves the rights of final interpretation and modification
