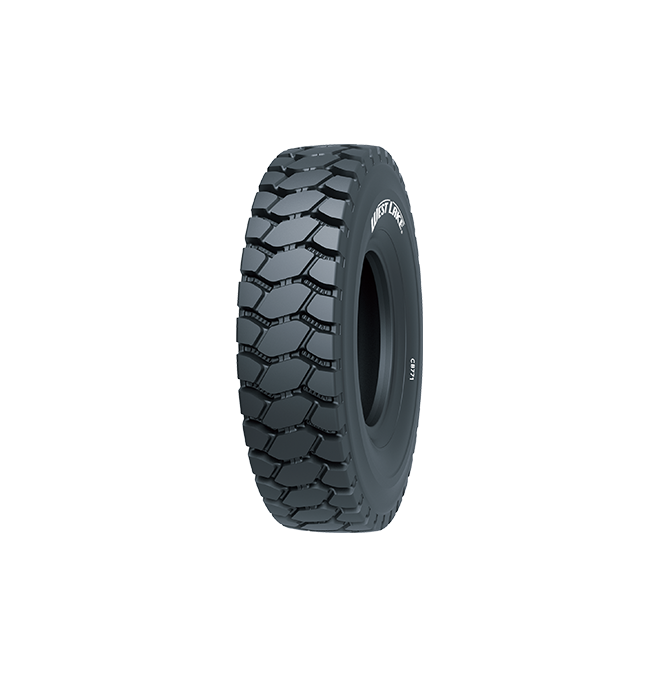

Aggressive lug design with large blocks at tread centre provides excellent traction and braking on rough road
Different compounds to optimize performance in all applications
Additional protective sidewalls are shaped to minimize damage from cutting
Optimised Retreading Ability because of the robust casing
| Tire Size | Type | LI/SS | Star Rating | TRA Code or Application | Recommended Rim/Flange Height | Approximate Inflated Dimensions | OTD | Cold Inflation Pressure | Max. Load Capacity | Application Max.Speed | |||||||||
| OD | SW | SLR | |||||||||||||||||
| inch | mm | inch | mm | inch | mm | inch | mm | 32ND | KPa | Psi | Kg | Lbs | km/h | mph | |||||
| 14.00R20 | TT/TL | 166B | ★★★ | E-4 | 10.00 | 1265 | 49.8 | 375 | 14.8 | 576 | 22.7 | 34 | 43 | 700 | 102 | 5300 | 11700 | 50 | 30 |
| 14.00R24 | TT | 169B | ★★★ | E-4 | 10.00/2.0 | 1420 | 55.9 | 375 | 14.8 | 649 | 25.6 | 38 | 48 | 700 | 102 | 5800 | 12800 | 50 | 30 |
| 14.00R25 | TT/TL | 169B/188A2 | ★★★ | E-4 | 10.00/2.0 | 1420 | 55.9 | 375 | 14.8 | 651 | 25.6 | 38 | 48 | 700 | 102 | 5800 | 12800 | 50 | 30 |
| 16.00R25 | TT/TL | 180B | ★★★ | E-4 | 11.25/2.0 | 1500 | 59.1 | 428 | 16.9 | 706 | 27.8 | 44 | 55 | 800 | 116 | 8000 | 17600 | 50 | 30 |
| 460/95R25 | TT/TL | 183B | ★★★ | E-4 | 11.25/2.0 | 1520 | 59.8 | 460 | 18.1 | - | - | 44 | 55 | 800 | 116 | 8750 | 19300 | 50 | 30 |
| 18.00R25 | TL | 185B | ★★ | E-4 | 13.00/2.5 | 1675 | 65.9 | 500 | 19.7 | 729 | 28.7 | 51 | 64 | 700 | 102 | 9250 | 20400 | 50 | 30 |
| 18.00R25 | TL | 189B | ★★★ | E-4 | 13.00/2.5 | 1675 | 65.9 | 500 | 19.7 | 729 | 28.7 | 51 | 64 | 800 | 116 | 10300 | 22700 | 50 | 30 |
| 16.00R29 | TT/TL | 182B/200A2 | ★★★ | E-4 | 11.50/2.5-29 | 1616 | 63.6 | 448 | 17.6 | - | - | 44 | 55 | 700 | 102 | 8500 | 18700 | 50 | 30 |
| 480/95R29 | TT/TL | 190B/204A2 | ★★★ | E-4 | 13.00/2.5-29 | 1615 | 63.6 | 480 | 18.9 | - | - | 44 | 55 | 900 | 131 | 10600 | 23400 | 50 | 30 |
| 505/95R29 | TT/TL | 193B | ★★★ | E-4 | 13.00/2.5-29 | 1730 | 68.1 | 505 | 19.9 | - | - | 44 | 55 | 900 | 131 | 11500 | 25400 | 50 | 30 |
| 18.00R33 | TL | 191B | ★★ | E-4 | 13.00/2.5 | 1875 | 73.8 | 500 | 19.7 | 860 | 33.9 | 54 | 68 | 700 | 102 | 10900 | 24000 | 50 | 30 |
| 18.00R33 | TL | 195B | ★★★ | E-4 | 13.00/2.5 | 1875 | 73.8 | 500 | 19.7 | 860 | 33.9 | 54 | 68 | 800 | 116 | 12150 | 26800 | 50 | 30 |
| 21.00R33 | TL | 200B | ★★ | E-4 | 15.00/3.0 | 1955 | 77.0 | 570 | 22.4 | 888 | 35.0 | 54 | 68 | 700 | 102 | 14000 | 30900 | 50 | 30 |
| 21.00R33 | TL | 203B | ★★★ | E-4 | 15.00/3.0 | 1955 | 77.0 | 570 | 22.4 | 888 | 35.0 | 54 | 68 | 800 | 116 | 15500 | 34200 | 50 | 30 |
| 21.00R35 | TL | 201B | ★★ | E-4 | 15.00/3.0 | 2050 | 80.7 | 570 | 22.4 | 913 | 35.9 | 61 | 77 | 700 | 102 | 14500 | 32000 | 50 | 30 |
| 21.00R35 | TL | 204B | ★★★ | E-4 | 15.00/3.0 | 2050 | 80.7 | 570 | 22.4 | 913 | 35.9 | 61 | 77 | 800 | 116 | 16000 | 35300 | 50 | 30 |
| 24.00R35 | TL | 209B | ★★ | E-4 | 17.00/3.5 | 2175 | 85.6 | 655 | 25.8 | 991 | 39.0 | 65 | 82 | 700 | 102 | 18500 | 40800 | 50 | 30 |
| 24.00R35 | TL | 212B | ★★★ | E-4 | 17.00/3.5 | 2175 | 85.6 | 655 | 25.8 | 991 | 39.0 | 65 | 82 | 800 | 116 | 20000 | 44100 | 50 | 30 |
*Reserves the rights of final interpretation and modification
