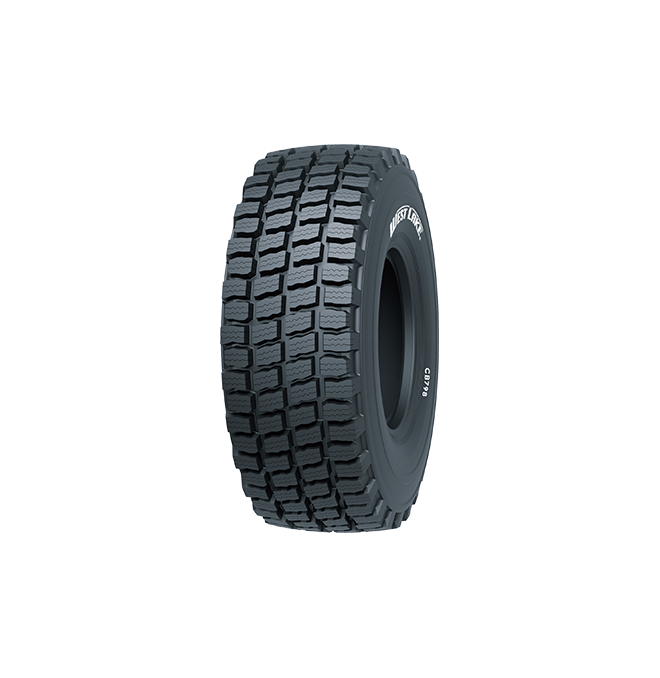

CB798

Unique winter compound ensure excellent traction in mud and on snow and ice

New designed sidewall with a protective band on the shoulder/sidewall interface provides good protection against accidental damage

Open tread pattern in shoulder ensure good self cleaning in the snow and mud

Data Sheet

Tire Size	Type	LI/SS	Star Rating	TRA Code or Application	Recommended Rim/Flange Height	Approximate Inflated Dimensions						OTD		Cold Inflation Pressure		Max. Load Capacity		Application Max.Speed
					Recommended Rim/Flange Height	OD		SW		SLR		OTD		Cold Inflation Pressure		Max. Load Capacity		Application Max.Speed
					inch	mm	inch	mm	inch	mm	inch	mm	32ND	KPa	Psi	Kg	Lbs	km/h	mph
340/80R18	TL	143A8	-	-	11.00	1001	39.4	343	13.5	460	18.1	20	25	400	58	2725	6000	40	25
340/80R18	TL	136B	-	-	11.00	1001	39.4	343	13.5	460	18.1	20	25	400	58	2240	4940	50	30
365/70R18	TL	146A2	-	-	11.00	969	38.1	360	14.2	446	17.6	20	25	375	54	3000	6610	10	5
365/70R18	TL	135B	-	-	11.00	969	38.1	360	14.2	446	17.6	20	25	375	54	2180	4800	50	30
405/70R18	TL	153A2	-	-	13.00	1025	40.4	407	16.0	474	18.7	20	25	375	54	3650	8050	10	5
405/70R18	TL	141B	-	-	13.00	1025	40.4	407	16.0	474	18.7	20	25	375	54	2575	5680	50	30
335/80R20	TL	147A2	-	-	11.00	1044	41.1	338	13.3	482	19.0	20	25	375	54	3075	6800	10	5
335/80R20	TL	136B	-	-	11.00	1044	41.1	338	13.3	482	19.0	20	25	375	54	2240	4940	50	30
405/70R20	TL	155A2	-	-	13.00	1076	42.4	407	16.0	495	19.5	25	31	375	54	3875	8550	10	5
405/70R20	TL	143B	-	-	13.00	1076	42.4	407	16.0	495	19.5	25	31	375	54	2725	6000	50	30
405/70R24	TL	158A2	-	-	13.00	1178	46.4	407	16.0	503	19.8	24	30	375	54	4250	9370	10	5
405/70R24	TL	146B	-	-	13.00	1178	46.4	407	16.0	503	19.8	24	30	375	54	3000	6610	50	30
420/65R24	TL	132A8	-	-	13.00	1156	45.5	418	16.5	537	21.1	24	30	240	35	2000	4410	40	25
455/70R24	TL	165A2	-	-	14.00	1248	49.1	452	17.8	576	22.7	24	30	375	54	5150	11400	10	5
455/70R24	TL	154B	-	-	14.00	1248	49.1	452	17.8	576	22.7	24	30	375	54	3750	8250	50	30
460/70R24	TL	159A8	-	-	14.00	1254	49.4	455	17.9	576	22.7	24	30	400	58	4375	9650	40	25
460/70R24	TL	159B	-	-	14.00	1254	49.4	455	17.9	576	22.7	24	30	400	58	4375	9650	50	30
500/70R24	TL	164A8	-	-	16.00	1310	51.6	503	19.8	603	23.7	24	30	400	58	5000	11000	40	25
500/70R24	TL	164B	-	-	16.00	1310	51.6	503	19.8	603	23.7	24	30	400	58	5000	11000	50	30
14.00R24	TL	155A8	★★	G-2	8.00TG	1348	53.1	364	14.3	616	24.3	25	31	450	65	3875	8550	40	25
15.5R25	TL	160B	★★	E-3	12.00/1.3	1275	50.2	395	15.6	586	23.1	25	31	525	76	4500	9900	50	30
15.5R25	TL	176A2	★★	L-3	12.00/1.3	1275	50.2	395	15.6	586	23.1	25	31	650	94	7100	15700	10	5
17.5R25	TL	167B	★★	E-3	14.00/1.5	1350	53.1	445	17.5	618	24.3	28	35	525	76	5450	12000	50	30
17.5R25	TL	182A2	★★	L-3	14.00/1.5	1350	53.1	445	17.5	618	24.3	28	35	650	94	8500	18700	10	5
20.5R25	TL	177B	★★	E-3	17.00/2.0	1490	58.7	520	20.5	677	26.7	31	39	525	76	7300	16100	50	30
20.5R25	TL	193A2	★★	L-3	17.00/2.0	1490	58.7	520	20.5	677	26.7	31	39	650	94	11500	25400	10	5
23.5R25	TL	185B	★★	E-3	19.50/2.5	1615	63.6	595	23.4	730	28.7	34	43	525	76	9250	20400	50	30
23.5R25	TL	201A2	★★	L-3	19.50/2.5	1615	63.6	595	23.4	730	28.7	34	43	650	94	14500	32000	10	5
26.5R25	TL	193B	★★	E-3	22.00/3.0	1750	68.9	675	26.6	-	-	42	53	525	76	11500	25400	50	30
26.5R25	TL	209A2	★★	L-3	22.00/3.0	1750	68.9	675	26.6	-	-	42	53	650	94	18500	40800	10	5
29.5R25	TL	200B	★★	E-3	25.00/3.5	1875	73.8	750	29.5	-	-	45	57	525	76	14000	30900	50	30
29.5R25	TL	216A2	★★	L-3	25.00/3.5	1875	73.8	750	29.5	-	-	45	57	650	94	22400	49400	10	5
550/65R25	TL	174B	★★	E-3	17.00/2.0	1350	53.1	545	21.5	-	-	30	38	425	62	6700	14800	50	30
550/65R25	TL	189A2	★★	L-3	17.00/2.0	1350	53.1	545	21.5	-	-	30	38	625	91	10300	22700	10	5
600/65R25	TL	178B	★★	E-3	19.50/2.5	1415	55.7	605	23.8	645	25.4	35	44	425	62	7500	16500	50	30
600/65R25	TL	195A2	★★	L-3	19.50/2.5	1415	55.7	605	23.8	645	25.4	35	44	625	91	12150	26800	10	5
650/65R25	TL	180B	★★	E-3	19.50/2.5	1480	58.3	640	25.2	672	26.5	38	48	425	62	8000	17600	50	30
650/65R25	TL	200A2	★★	L-3	19.50/2.5	1480	58.3	640	25.2	672	26.5	38	48	625	91	14000	30900	10	5
750/65R25	TL	190B	★★	E-3	24.00/3.0	1610	63.4	755	29.7	727	28.6	43	54	425	62	10600	23400	50	30
750/65R25	TL	209A2	★★	L-3	24.00/3.0	1610	63.4	755	29.7	727	28.6	43	54	625	91	18500	40800	10	5
775/65R29	TL	195B	★★	E-3	24.00/3.5	1745	68.7	770	30.3	-	-	44	55	425	62	12150	26800	50	30
775/65R29	TL	213A2	★★	L-3	24.00/3.5	1745	68.7	770	30.3	-	-	44	55	625	91	20600	45400	10	5
800/65R29	TL	197B	★★	E-3	27.00/3.0	1775	69.9	800	31.5	-	-	50	63	425	62	12850	28300	50	30
800/65R29	TL	215A2	★★	L-3	27.00/3.0	1775	69.9	800	31.5	-	-	50	63	625	91	21800	48100	10	5
875/65R29	TL	203B	★★	E-3	28.00/3.5	1875	73.8	880	34.6	-	-	50	63	425	62	15500	34200	50	30
875/65R29	TL	221A2	★★	L-3	28.00/3.5	1875	73.8	880	34.6	-	-	50	63	625	91	25750	56800	10	5

*Reserves the rights of final interpretation and modification
