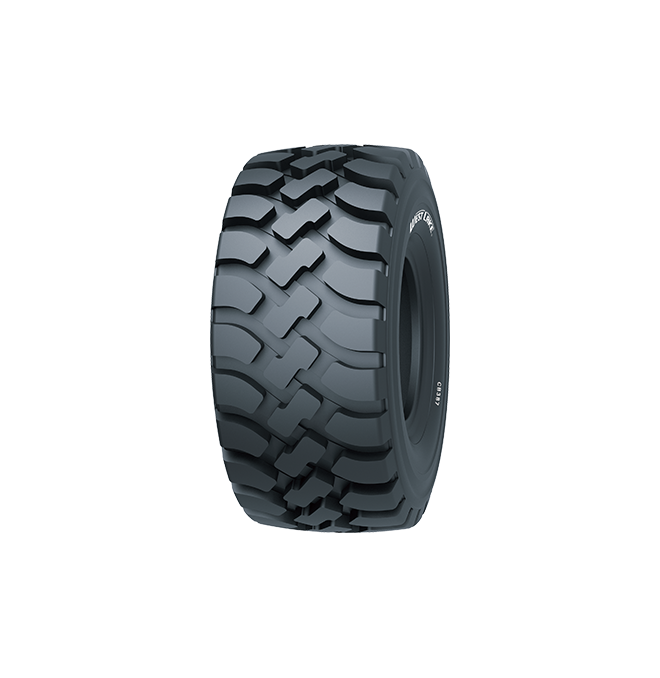

The non-directional tread design and open shoulder grooves offer high traction in all applications
Super wide tread width guarantee ultra longer tyre life
Cut resistant tread design for even Wear
| Tire Size | Type | LI/SS | Star Rating | TRA Code or Application | Recommended Rim/Flange Height | Approximate Inflated Dimensions | OTD | Cold Inflation Pressure | Max. Load Capacity | Application Max.Speed | |||||||||
| OD | SW | SLR | |||||||||||||||||
| inch | mm | inch | mm | inch | mm | inch | mm | 32ND | KPa | Psi | Kg | Lbs | km/h | mph | |||||
| 20.5R25 | TL | 177B | ★★ | E-4 | 17.00/2.0 | 1550 | 61.0 | 520 | 20.5 | - | - | 52 | 66 | 525 | 76 | 7300 | 16100 | 50 | 30 |
| 20.5R25 | TL | 193A2 | ★★ | L-4 | 17.00/2.0 | 1550 | 61.0 | 520 | 20.5 | - | - | 52 | 66 | 650 | 94 | 11500 | 25400 | 10 | 5 |
| 23.5R25 | TL | 185B | ★★ | E-4 | 19.50/2.5 | 1615 | 63.6 | 595 | 23.4 | 759 | 29.9 | 56 | 71 | 525 | 76 | 9250 | 20400 | 50 | 30 |
| 23.5R25 | TL | 201A2 | ★★ | L-4 | 19.50/2.5 | 1615 | 63.6 | 595 | 23.4 | 759 | 29.9 | 56 | 71 | 650 | 94 | 14500 | 32000 | 10 | 5 |
| 775/65R29 | TL | 195B | ★★ | E-4 | 24.00/3.5 | 1745 | 68.7 | 770 | 30.3 | 792 | 31.2 | 56 | 71 | 425 | 62 | 12150 | 26800 | 50 | 30 |
| 775/65R29 | TL | 213A2 | ★★ | L-4 | 24.00/3.5 | 1745 | 68.7 | 770 | 30.3 | 792 | 31.2 | 56 | 71 | 625 | 91 | 20600 | 45400 | 10 | 5 |
*Reserves the rights of final interpretation and modification
