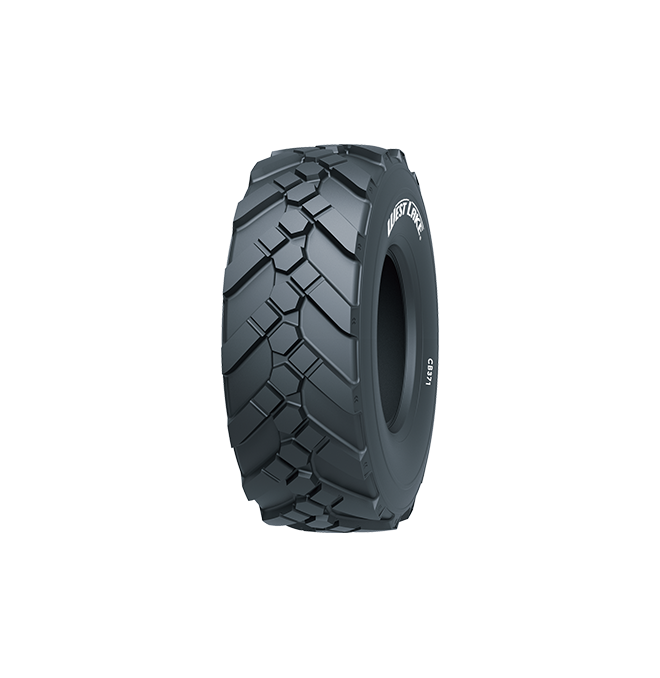

The unique block pattern design ensures excellent traction of the tire.
The latest steel wire material is used in the robust casing to improve the load capacity.
Special tread compound provides the best puncture resistance to some extent.
| Tire Size | Type | LI/SS | Star Rating | TRA Code or Application | Recommended Rim/Flange Height | Approximate Inflated Dimensions | OTD | Cold Inflation Pressure | Max. Load Capacity | Application Max.Speed | |||||||||
| OD | SW | SLR | |||||||||||||||||
| inch | mm | inch | mm | inch | mm | inch | mm | 32ND | KPa | Psi | Kg | Lbs | km/h | mph | |||||
| 445/65R22.5 | TL | 169F | - | - | 14.00 | 1178 | 46.4 | 430 | 16.9 | - | - | 29 | 37 | 800 | 116 | 5800 | 12800 | 80 | 50 |
| 445/65R22.5 | TL | 175A8 | - | - | 14.00 | 1178 | 46.4 | 430 | 16.9 | - | - | 29 | 37 | 750 | 109 | 6900 | 15200 | 40 | 25 |
*Reserves the rights of final interpretation and modification
